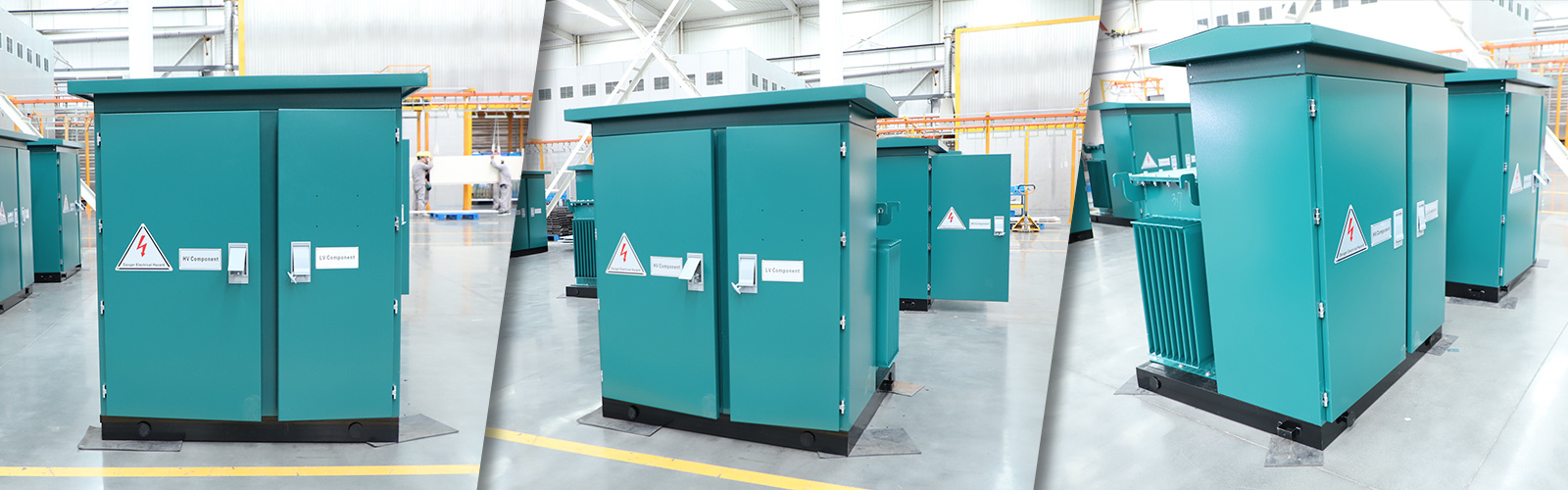

ZGS Combined Substation (Pad Mounted Transformer)

- 商品名称: ZGS Combined Substation (Pad Mounted Transformer)
- 商品编号: cp0030
- Brand: TSTY
- Series: ZGS
- Email: sales@tstyelectric.com
- Country of origin: China

Email：

sales@tstyelectric.com

Tel：

+86-371-88881569

E-mail

Product Detail

TSTY produces 30,000 box-type substations annually, which have been verified by projects in more than 80 countries around the world and can respond to delivery quickly.

Its supply chain network covers emerging markets such as the Middle East and South America, ensuring efficient and stable supply. Substation Transformer ZGS can operate continuously and stably in extreme environments such as high temperature, high cold, and high altitude.

The energy efficiency of the independently developed substation transformer ZGS reaches the international first-class level, and the operating cost is reduced by more than 30%; the intelligent monitoring system increases the fault diagnosis efficiency by 50% and supports millisecond-level remote response; the use of nano-level environmentally friendly coatings and low-carbon processes reduces production carbon emissions by 40%, helping to achieve the dual carbon goals.

Substation Transformer Advantages

Small size: The transformer body, high-voltage load switch, fuse and other components are placed together in the compartment, which greatly reduces the size of the components, makes the structure more compact, occupies a small area, is easy to place, and is easy to coordinate with the environment such as the community.

Easy installation: The overall structural design makes the installation process flexible and convenient. It can be customized and configured according to different power systems and needs, and can be quickly installed and put into use.

Low cost: It can shorten the length of low-voltage cables, reduce line losses, and reduce the cost of power supply equipment.

Large-scale manufacturing: annual output of 30000 box transformers;

Customized needs: provide "one-to-one" service from demand analysis, drawing design to factory testing, and urgent project cycles can be negotiated;

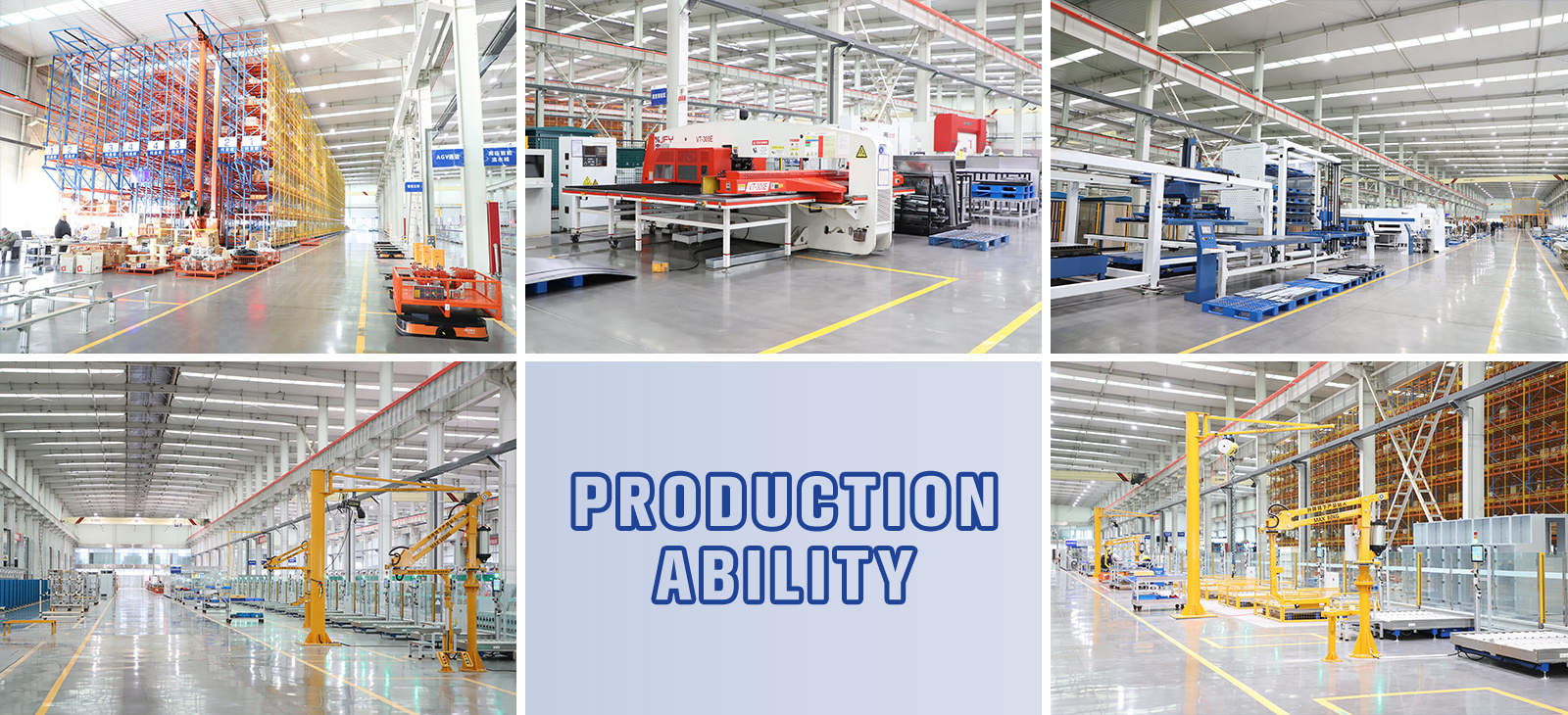

High production efficiency: Robotic intelligent manufacturing: full-process automated assembly, welding, testing, production efficiency increased by 60%, product consistency reached 99.8%.

Parameters Table

ZGS Combined Transformer
				Loss (W)				Weight (kg)			(mm)
Rated Capacity	Voltage Group(kV)		Connection		(75)	No-load current	Impedance				(L)	(W)	(H)
(kVA)	HV	LV	Connection	No-load	Load	%	%	Machine	Oil	Gross	Dimension
200	10	0.4	Yyn0 or Dyn11	335	2600	0.6	4	601	733	1894	1865	1240	1735
250				390	3050	0.5		716	749	2060	1865	1280	1735
315				465	3650	0.45		835	733	2148	1865	1730	1735
400				560	4300	0.4		1006	729	2375	1865	1440	1805
500				670	5100	0.4		1156	747	2603	1865	1450	1805
630				840	6200	0.4	4.5	1295	757	2826	1865	1450	1805
800				980	7500	0.4		1521	872	3357	1450	1495	1805
1000				1190	10300	0.3		1634	970	3704	1865	1510	1805

About TSTY

TSTY Electric - a national high-tech enterprise with more than 30 years of history, focuses on the intelligent manufacturing of power transmission and distribution equipment, and mainly deals in oil-immersed/dry-type transformers, box-type substations, and high and low voltage switchgear.

Certificates

All substation transformer products have passed CE, IEC, UL,SGS, GOST and other certifications, and have been exported to more than 80 countries and regions.
