Compact Transformer Substation

- 商品名称: Compact Transformer Substation
- 商品编号: cp0007
- Brand: TSTY
- Series: European Box-Type Substation
- USES: Low cost, high reliability, intelligent power distribution solutions
- Country of origin: China

Email：

sales@tstyelectric.com

Tel：

+86-371-88881569

E-mail

Product Detail

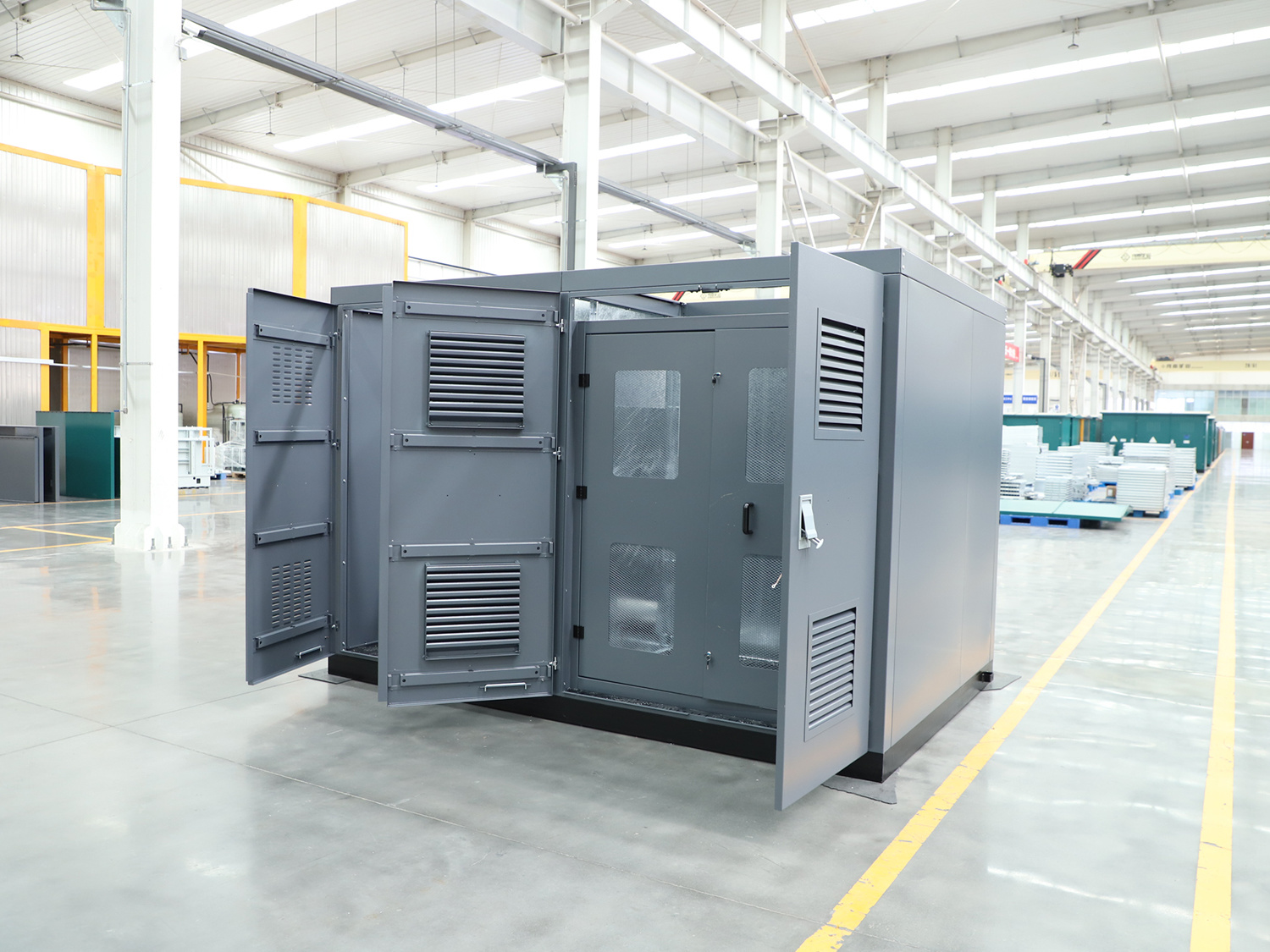

TSTY compact substation integrates high-voltage ring network cabinet, transformer and low-voltage cabinet, supports customers to customize the number and method of inlet and outlet lines, is specially designed for outdoor environment, and has excellent dustproof and waterproof performance. The product has obtained CE, ISO, IEC, 3C and other certifications, and has been exported to more than 80 countries and has passed local standard inspections.

TSTY Compact Substation Manufacturing Advantages

High-quality Materials

1. TSTY box-type substation shell adopts 7 layers of nano-composite coating and one-piece shell processing technology, with excellent anti-corrosion performance (more than 20 years) and wide temperature range adaptability from -40℃ to +40℃.

2. Through modular structural design and customizable appearance color, it can achieve organic integration with the urban landscape while ensuring power supply stability.

Intelligent Manufacturing

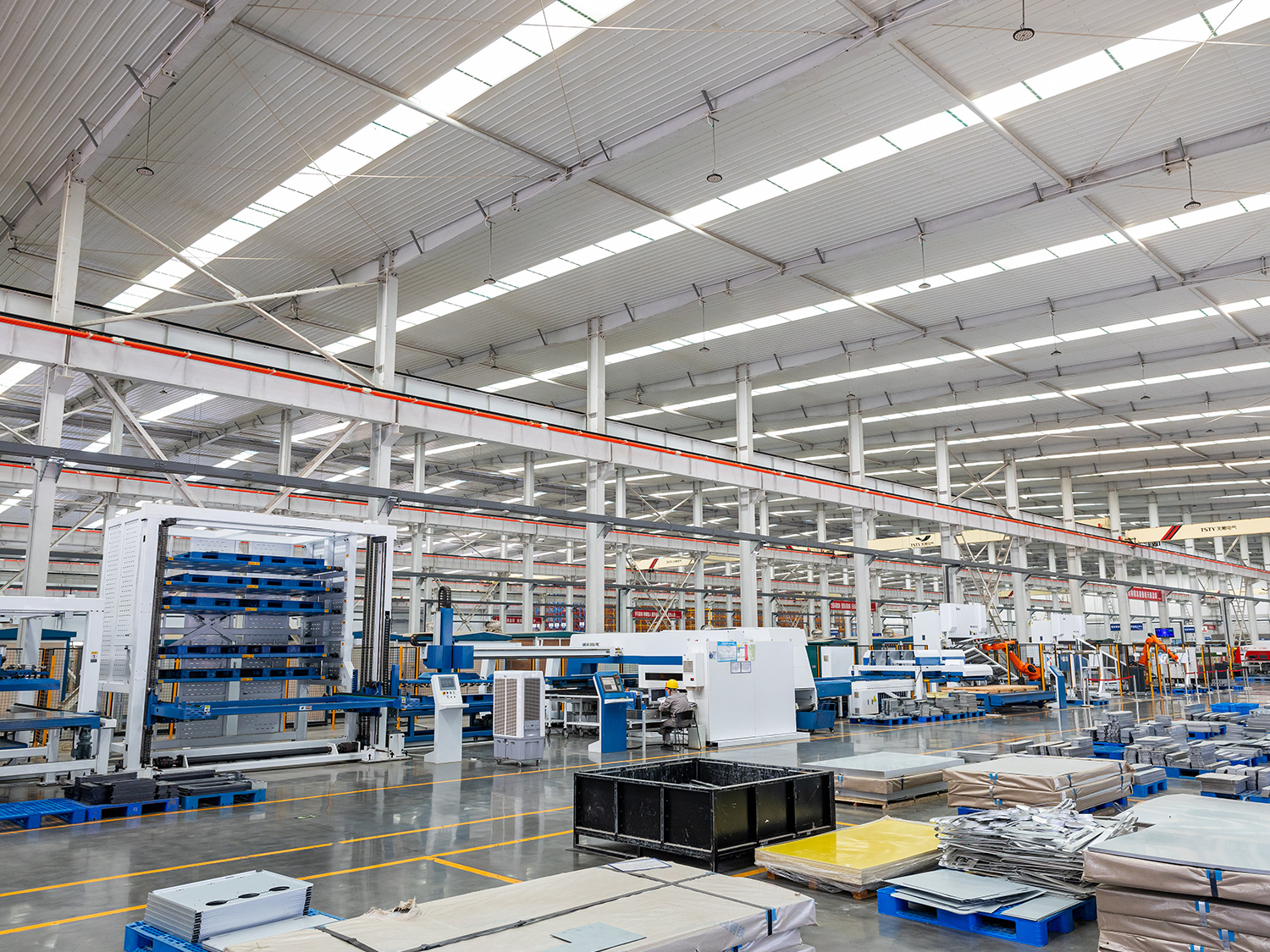

1. Full-process automated assembly/welding/testing (each link is equipped with high-precision sensors and testing equipment), production efficiency increased by 60%, and product consistency reached 99.8%.
2. Real-time collection of 500+ production parameters, dynamic optimization of AI algorithm, and customized order delivery cycle shortened by 40% to meet the customized needs of different customers.
3. Annual output of box-type substation: 30,000 units

Compact Substation Parameters

No.	Items			Unit	Value
1	Rated voltage	Primary		kV	40.5
		Secondary			12; 0.69
		Subsidiary circuit		V	110; 220; 380
2	Rated current	High voltage circuit		A	400~1250
		Low voltage circuit			630~3150
3	Rated frequency			Hz	50
4	Rated power			kVA	1250; 1600; 2000~20000
5	Rated insulation level	High voltage side	Power frequency	kV	95
			impact		185
		Low voltage side	Power frequency		42
			impact		75
6	Rated short time withstand current	High voltage side		kA	20; 25; 31.5
		Low voltage side			25; 31.5; 40
7	Rated peak withstand current	High voltage side			50; 63; 80
		Low voltage side			63; 80; 100
8	Insulation level of transformer	Power frequency		kV	65
		Impact			185
9	Insulation level of subsidiary circuit				2

Service Advantages

① Customized service: Deeply involved in 20+ State Grid benchmark projects, adapting to industrial/commercial/municipal multi-scenario needs, providing customized design and manufacturing services.

②After-sales service guarantee: Establish a professional electrical equipment operation and maintenance team to provide regular inspections, maintenance, fault repair and other services. Multi-language (English/Spanish/Russian/French) 24-hour hotline + online platform, quickly respond to customer feedback, arrange technicians to handle faults in a timely manner, and ensure normal power supply for customers.
