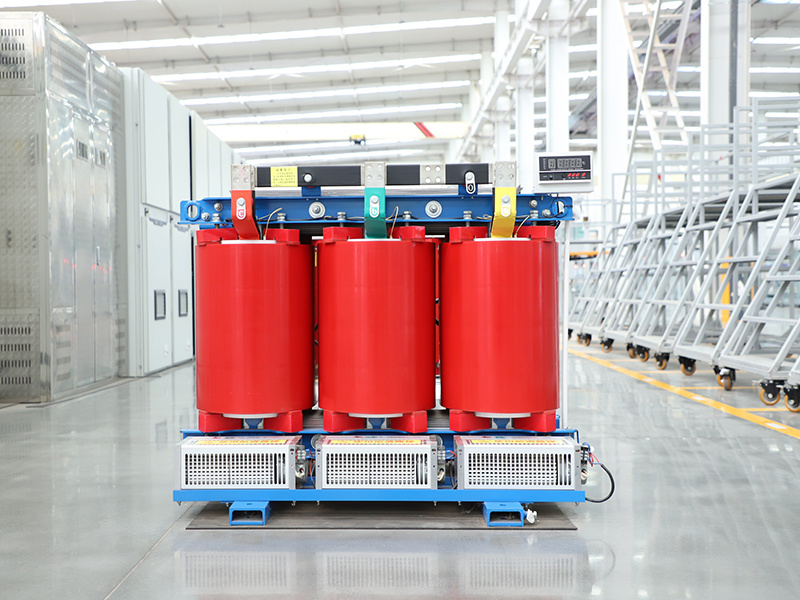

33KV（35kv） Dry-type Distribution Transformer

- 商品名称: 33KV（35kv） Dry-type Distribution Transformer
- 商品编号: cp0016
- Brand: TSTY
- Capacity: 380v~35kv
- Voltage: 30kva~5000kva
- USES: This product is suitable for important places such as urban power grid, tower block, business center, theater, hospitals, hotel, tunnel, subway, high-speed rail, and airport.

Email：

sales@tstyelectric.com

Tel：

+86-371-88881569

E-mail

Product Detail

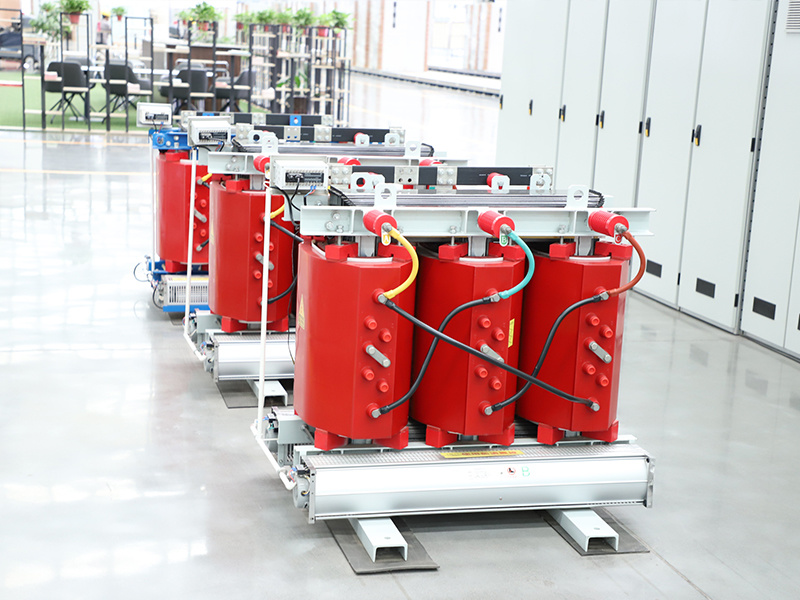

The 33kV/35kV voltage level is in the category of sub-transmission and high-voltage distribution. It is higher than the common 10kV/20kV distribution voltage and is usually used for higher power supply capacity and longer power supply distance. It is particularly suitable for supplying power to remote load centers, scattered towns, large industrial and mining enterprises, and wind farms/photovoltaic power stations. With its excellent safety and installation flexibility, the 35kv dry-type transformer has irreplaceable advantages in specific application scenarios.

Dry Transformer Advantages

1.High reliability: using advanced technology, high mechanical strength, strong short-circuit resistance, small partial discharge, good thermal stability, and a service life of 30 years.

2.Zero pollution operation and maintenance: Using epoxy resin cast insulation material to meet high fire and explosion requirements, especially suitable for densely populated or enclosed spaces; Oil-free cooling system, eliminating the risk of oil leakage, in line with environmental protection certification; Fully sealed structure to achieve maintenance-free design, the whole life cycle operation and maintenance costs reduced by 60% +.

3.Wide voltage range adaptation: Support 6.6kV to 35kV medium and high voltage grid access, covering industrial and commercial power distribution, rail transit, new energy grid connection and other scenarios.

4.Efficient heat dissipation and weather resistance: Natural air cooling (AN) or forced air cooling (AF) mode, combined with IP23 and above protection level, can withstand -40 ° C to + 120 ° C extreme environment, humid, dusty, corrosive gas environment can still operate stably.

33kv/35kv Dry Transformer Parameters

SCB10 35KV Dry-type Transformer
Rated Capacity (kVA)	Voltage Combination			Vector Group	No-Load Loss(w)	Load Loss	No-Load Current (%)	Short Circuit Impedance (%)
Rated Capacity (kVA)	High Voltage（kV)	Tapping Range	Low Voltage (kV)	Vector Group	No-Load Loss(w)	Load Loss	No-Load Current (%)	Short Circuit Impedance (%)
800	33- 38.5	±5% ±2×2.5%	3.5 6 6.3 10 10.5 11	Dyn11 Yd11 Yd11 Yyn11	2200	9400	1.1	6
1000					2610	10800	1.1
1250					3060	11900	1
1500					3600	15400	1
2000					4130	18200	0.9	7
2500					4750	21800	0.9	7
3150					5880	24500	0.8	8
4000					6860	29400	0.8
5000					8180	34960	0.7
6300					9680	40800	0.7
8000				Dyn11 Yd11 YNn11	11000	46060	0.6	9
10000			6 6.3 105 11		12660	56500	0.6
12500					15400	64600	0.5
16000					18900	76000	0.5
20000					22400	85500	0.4	10

Product Design Advantages

Advanced casting process

It adopts the most advanced epoxy resin casting process in China, with good insulation performance;

High-quality raw materials

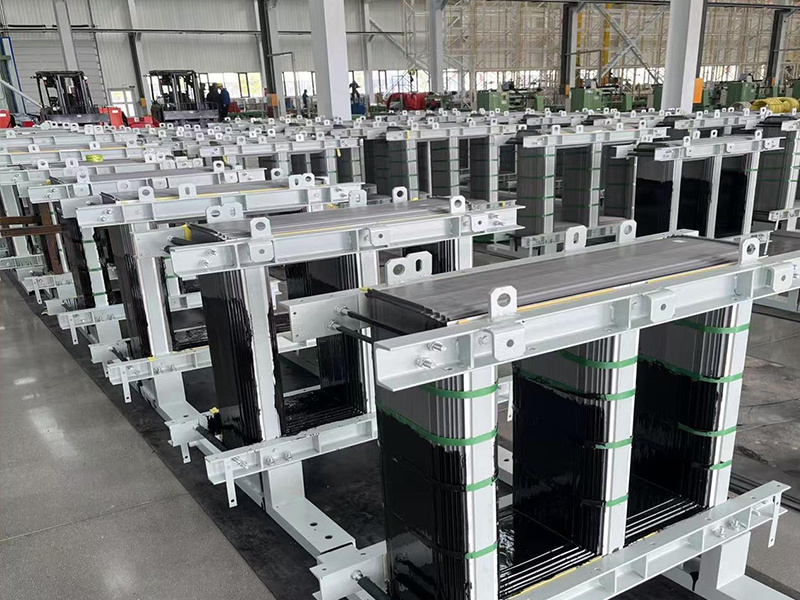

It adopts the new cold-pressed oriented silicon steel sheet as the core, seven-step 45-degree full-bevel joints, beautiful process, and no-load loss is reduced by 3-5 percentage points compared with the three-step;

Transparent insulating paint

In traditional dry-type transformer production, the insulating paint of the core is mostly black or black, while TSTY uses transparent insulating paint, which can intuitively see the process and materials.

Bending clamps

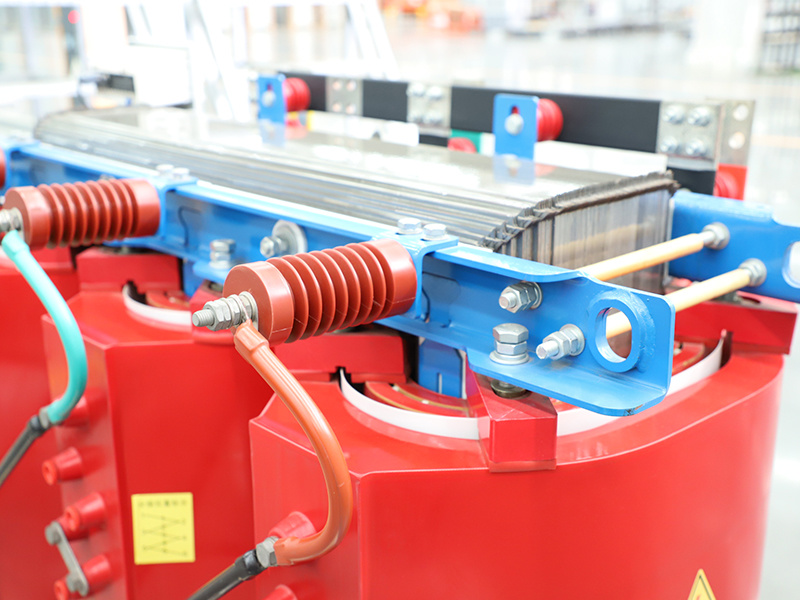

The independently designed core bending clamps have simple structure, convenient manufacturing and installation, and greatly reduce operating noise.

About TSTY

TSTY Electric - a national high-tech enterprise with more than 30 years of history, focuses on the intelligent manufacturing of power transmission and distribution equipment, and mainly deals in oil-immersed/dry-type transformers, box-type substations, and high and low voltage switchgear.
