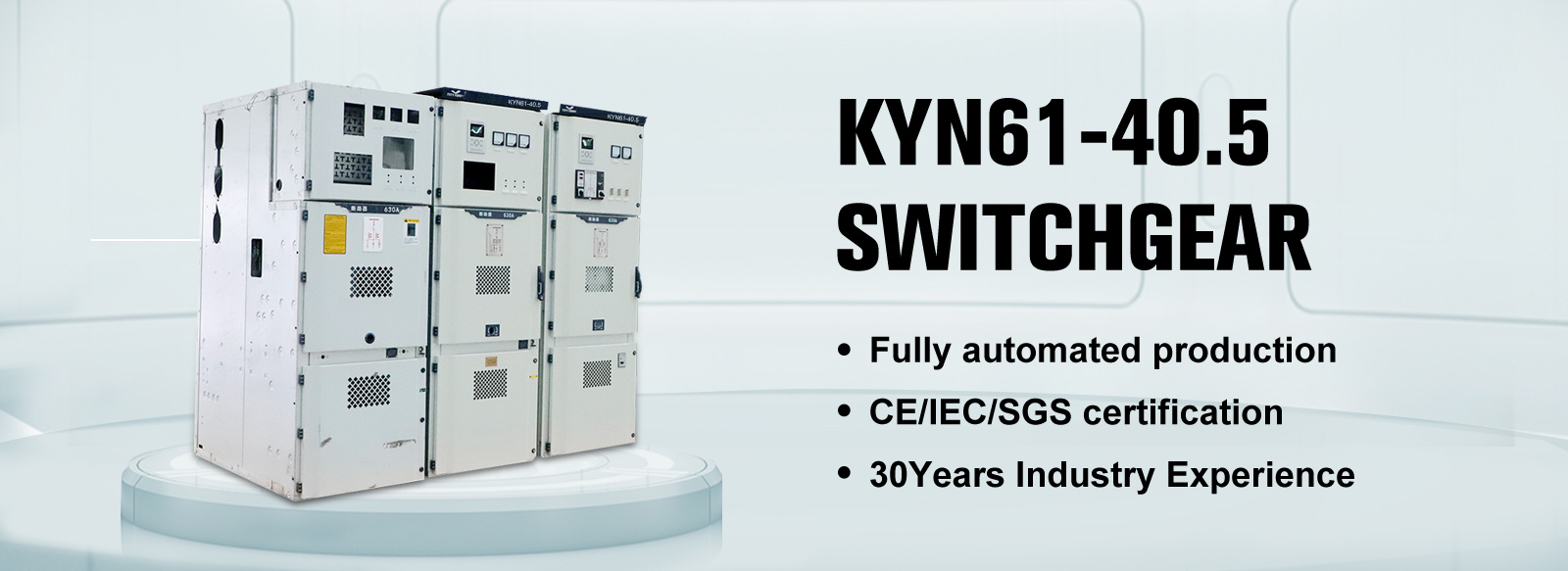

About KYN61-40.5

KYN61-40.5 is a relatively common high-voltage switchgear at present, rated voltage is 40.5kV. The equipped vacuum circuit breaker is in the middle of the switch cabinet, that is, the circuit breaker is located in the middle of the front cabinet of the switchgear, so the lower space can be saved for the expansion of other schemes or used as a cable room.

Application Channels:

Mainly used in power plants, substations, transformation and distribution centers of industrial and mining enterprises, and large-scale high-voltage motor starting equipment, etc., for receiving and distributing electric energy, and for controlling, protecting and monitoring circuits.

Product Features:

1. The cabinet body is constructed of 316L stainless steel with a nano-ceramic coating, has passed 3000 hours of salt spray and 200 cycles of hot and cold cycling, and boasts high UV resistance standards, with a 30-year warranty.

2. Compact, lightweight, aesthetically pleasing, user-friendly, durable, and maintenance-free.

3. Strong design capabilities, offering customized services (including exterior color and design customization). Suitable for a variety of complex environments (including acidic, alkaline, low-temperature, high-temperature, and cold conditions), with experience in exporting to over 80 countries.

4. A well-designed pressure relief duct and a "five-protection" mechanical interlock system ensure operator safety.

5. The main busbar has a rated current of 630A, a rated transfer current of 2500A, and a maximum fuse rating of 160A with a breaking current of 31.5kA.

     KYN61-40.5 Parameters

     Intelligent Logistics System

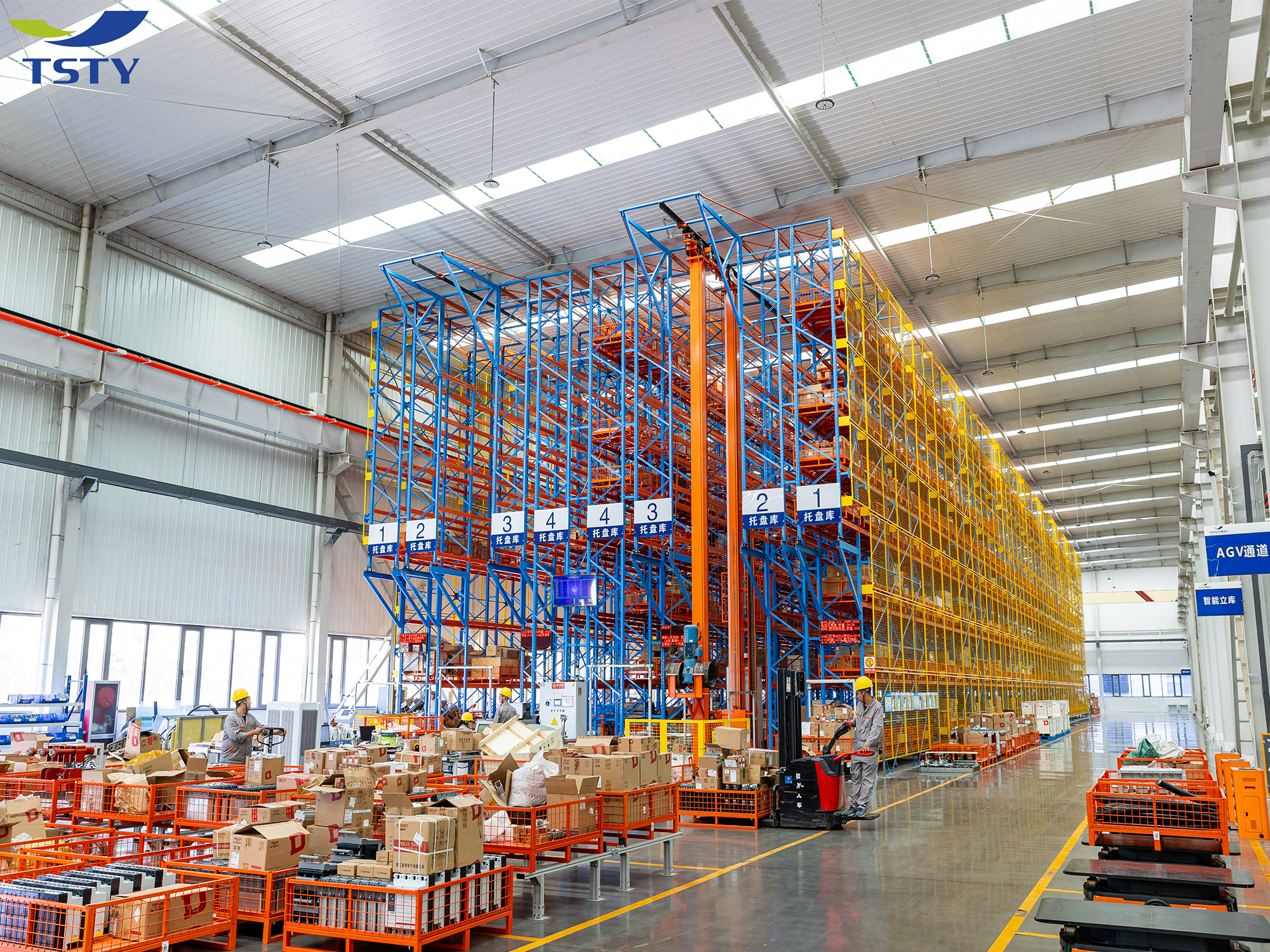

Three-dimensional warehousing system

Three-dimensional warehousing system: 20-meter high-bay warehouse, storage density increased by 300%; WMS intelligent scheduling, inventory turnover rate increased by 50%.

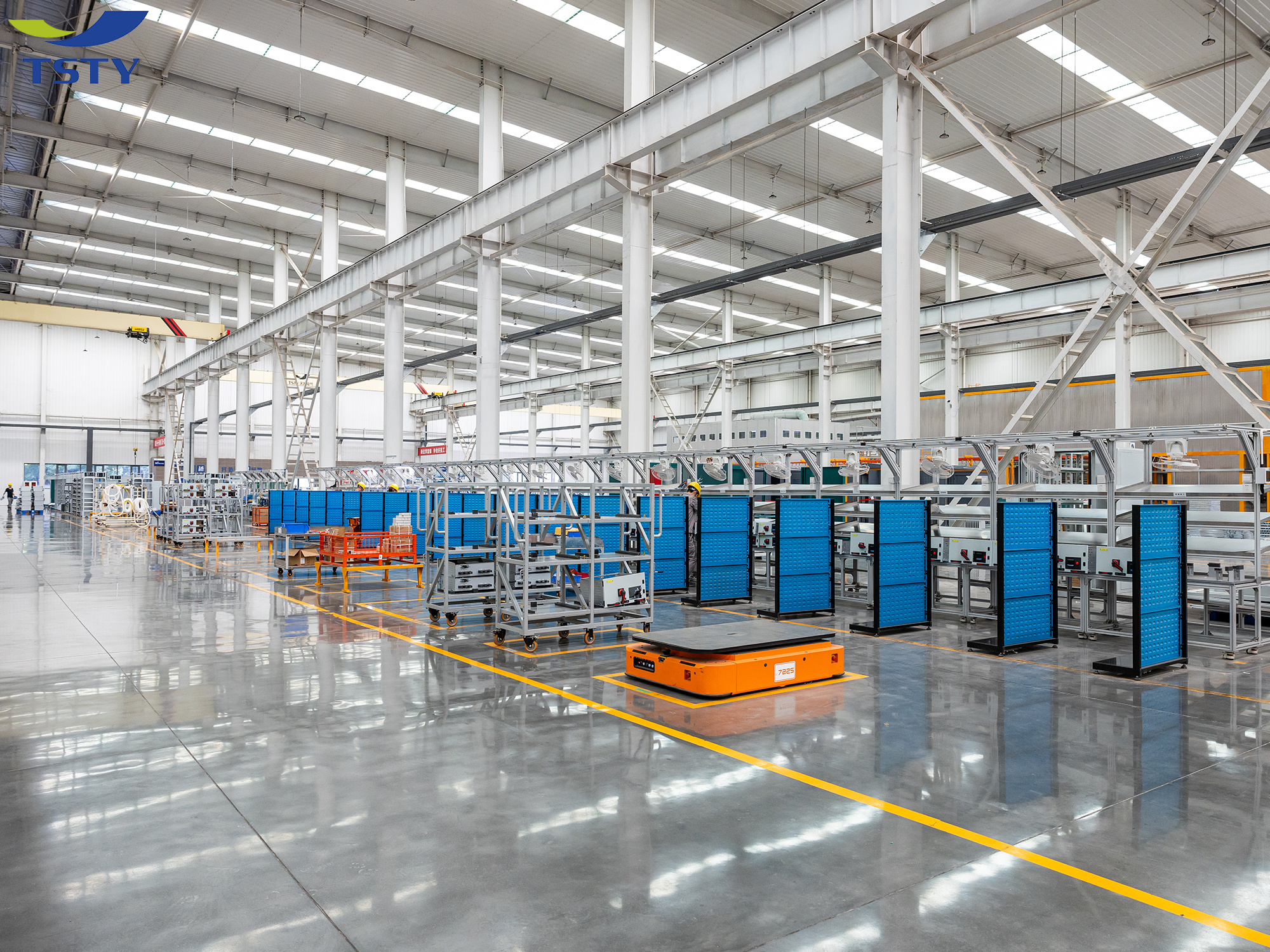

Unmanned distribution network

AGV+unmanned forklift cluster, handling efficiency reaches 120 pallets/hour

     Full-Scenario Verification

►Full-Scenario Verification and Intelligent Logistics System: Cabinet Parallel Testing - Real-World Simulation
►Full-Scenario Simulation Testing: Load Simulation, Emergency Operation Verification (Opening and Closing Response Time ≤ 20ms)
►Multi-Device Linkage Testing (Protection Device/Transformer Coordination Error <1%)
►Triple Performance Verification: Passed a 72-hour full-load temperature rise test and a mechanical lifespan test of ≥10,000 cycles

     About TSTY

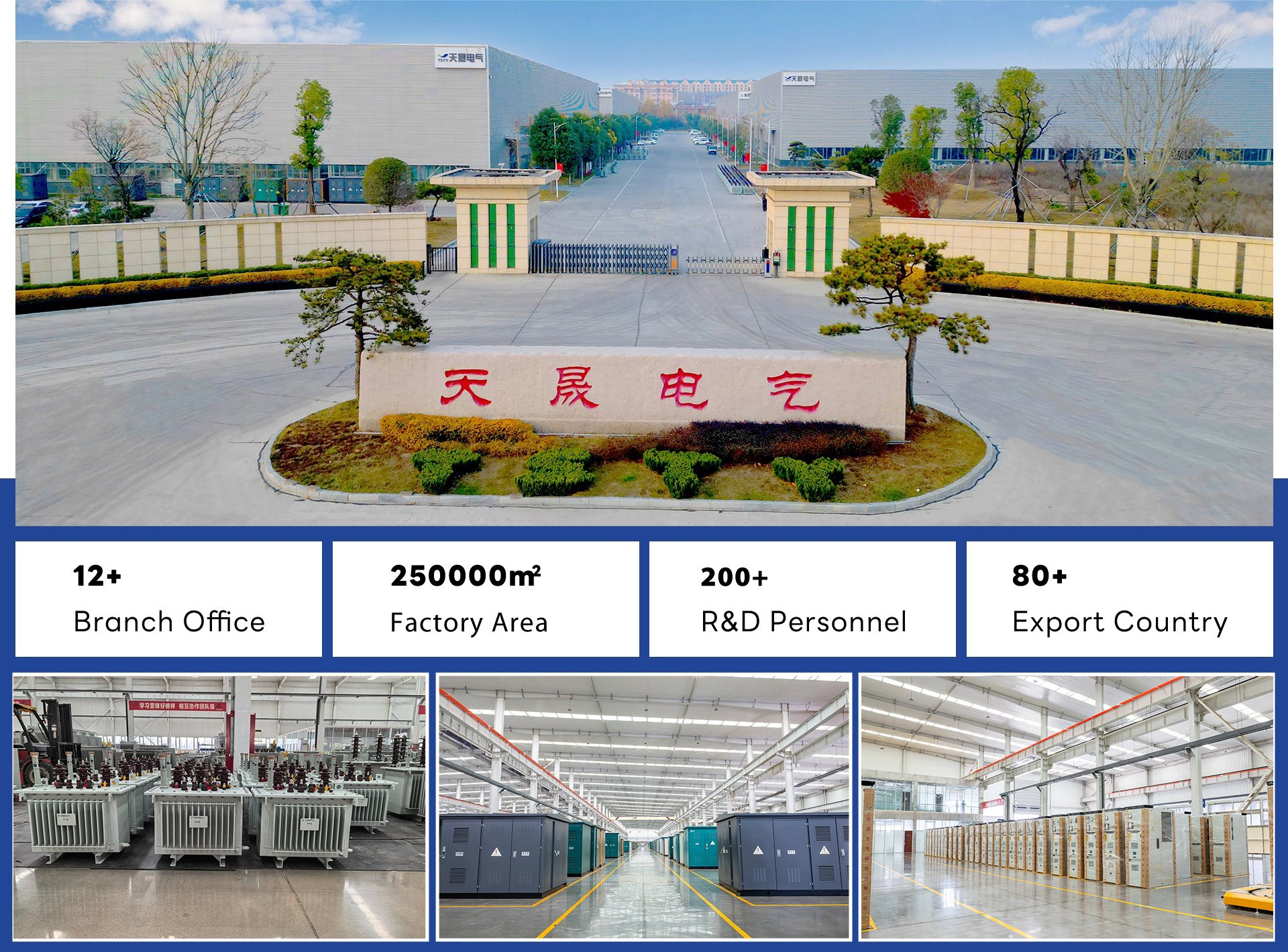

TSTY production base spans over 250,000 square meters and boasts a team of over 600 professional employees. Equipped with over 220 sets of advanced production equipment, we ensure we deliver high-quality power equipment to our customers.

We utilize a comprehensive suite of cutting-edge equipment that represents the highest industry standards, including high-precision industrial robots, German-imported spray coating systems, Schneider benchmark intelligent production lines, high-bay warehousing systems, AGV/unmanned forklift swarms, a full suite of press brakes, laser cutting machines, and other intelligent equipment. We utilize the latest technologies and processes to ensure our products meet international standards and meet customer needs.

Our entire product line is certified by CE/IEC/SGS and compatible with international standards such as ANSI/IEEE. We have established a zero-day service network covering over 80 countries, with a multilingual technical team providing 24/7 global support. Through customized full-lifecycle maintenance solutions, we help extend equipment lifespan by 30%, safeguarding global power security with our dual engine of "technology + service."
