About KYN28A-12

KYN28A-12 is a relatively common high-voltage switchgear at present, rated voltage is 3.6kV~12kV. The equipped vacuum circuit breaker is in the middle of the switch cabinet, that is, the circuit breaker is located in the middle of the front cabinet of the switchgear, so the lower space can be saved for the expansion of other schemes or used as a cable room.

Application Channels:

Mainly used in power plants, substations, transformation and distribution centers of industrial and mining enterprises, and large-scale high-voltage motor starting equipment, etc., for receiving and distributing electric energy, and for controlling, protecting and monitoring circuits.

KYN28A-12 Parameters

Strict Quality Control

1. Equipped with a ±0.1mm high-precision industrial robot, it achieves millimeter-level control of switchgear bending and assembly, achieving a component standardization rate of ≥99% and a dimensional qualification rate exceeding 99.5%.

2. The cabinet body is constructed from 316L stainless steel with a nano-ceramic coating, processed and formed, and assembled using high-strength bolts, nuts, and rivets.

3. Compatible with various brands of circuit breakers, including components from brands such as ABB and Siemens, including the domestically produced ZN85-40.5 (3AV3) vacuum circuit breaker and Schneider's HVX series, to meet diverse user needs.

4. Each functional compartment in the switchgear is separated by metal partitions and equipped with independent pressure relief ducts.

5. Circuit breaker, earthing switch, and other operations can be performed with the high-voltage compartment door closed, allowing for closed-door operation.

6. Full-Scenario Verification and Intelligent Logistics System:

Cabinet Parallel Testing - Real-World Simulation

Full-Scenario Simulation Testing: Load Simulation, Emergency Operation Verification (Opening and Closing Response Time ≤ 20ms)

Multi-Device Interlocking Testing (Protection Device/Transformer Coordination Error <1%)

Triple Performance Verification: Passed a 72-hour full-load temperature rise test and a mechanical life test of ≥10,000 cycles

Compliant with IEC standards

R&D Advantages

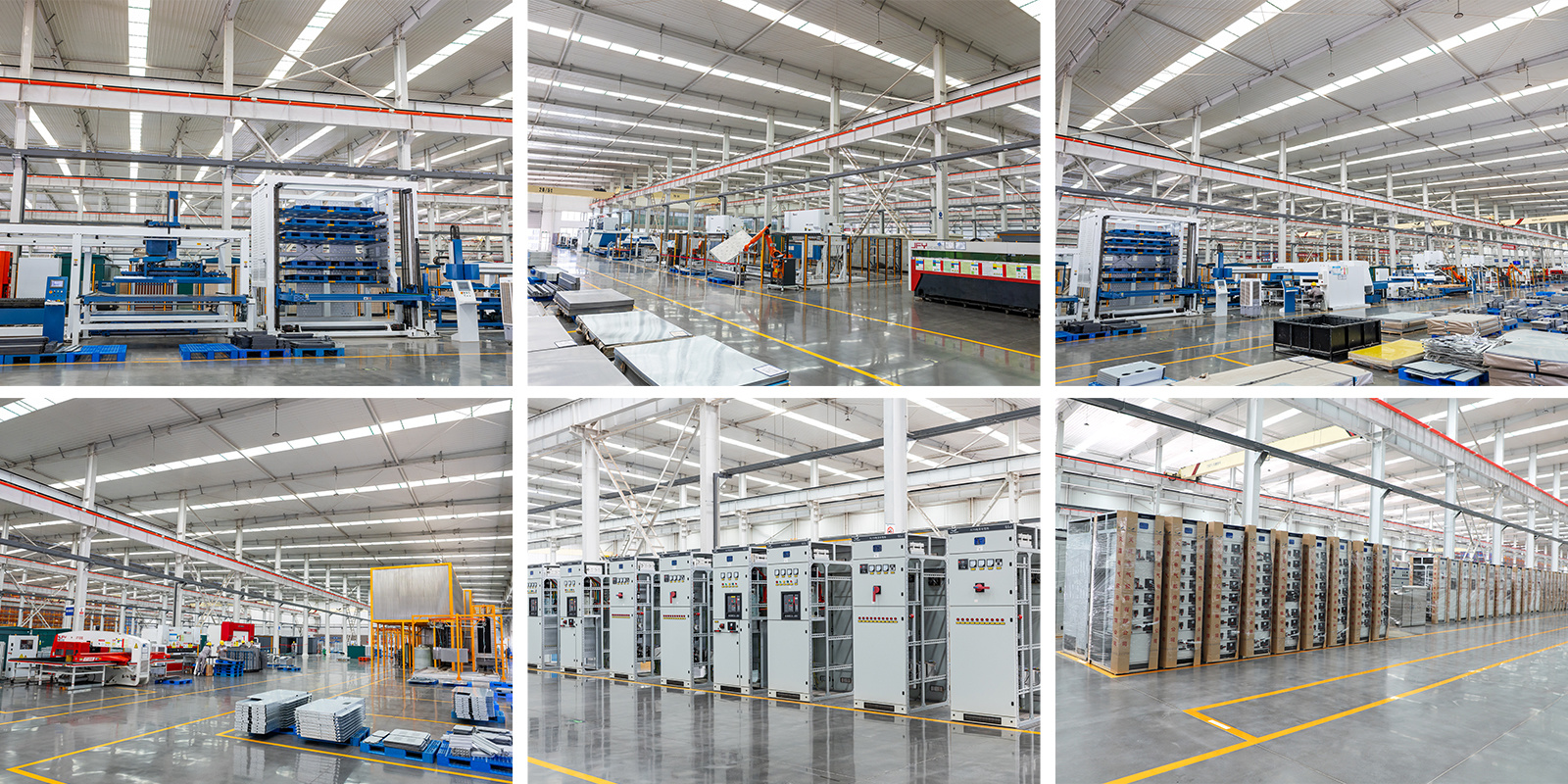

TSTY production base spans over 250,000 square meters and boasts a team of over 600 professional employees. Equipped with over 220 sets of advanced production equipment, we ensure we deliver high-quality power equipment to our customers.

We utilize a comprehensive suite of cutting-edge equipment that represents the highest industry standards, including high-precision industrial robots, German-imported spray coating systems, Schneider benchmark intelligent production lines, high-bay warehousing systems, AGV/unmanned forklift swarms, a full suite of press brakes, laser cutting machines, and other intelligent equipment. We utilize the latest technologies and processes to ensure our products meet international standards and meet customer needs.

Our entire product line is certified by CE/IEC/SGS and compatible with international standards such as ANSI/IEEE. We have established a zero-day service network covering over 80 countries, with a multilingual technical team providing 24/7 global support. Through customized full-lifecycle maintenance solutions, we help extend equipment lifespan by 30%, safeguarding global power security with our dual engine of "technology + service."
