6.6KV Oil Immersed Power Distribution Transformer

- 商品名称: 6.6KV Oil Immersed Power Distribution Transformer
- 商品编号: cp006
- Brand: TSTY
- Capacity: 30kVA~10000kVA
- Voltage: 6KV~35KV
- USES: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements

Email：

sales@tstyelectric.com

Tel：

+86-371-88881569

E-mail

Product Detail

Automated Production Advantages

Full Chain Automation

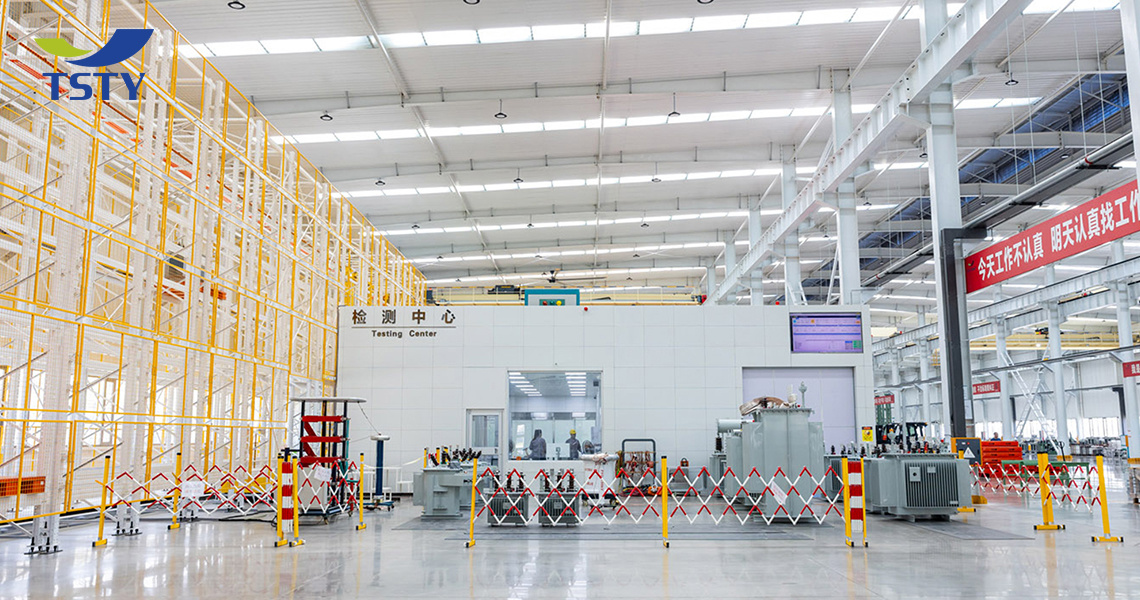

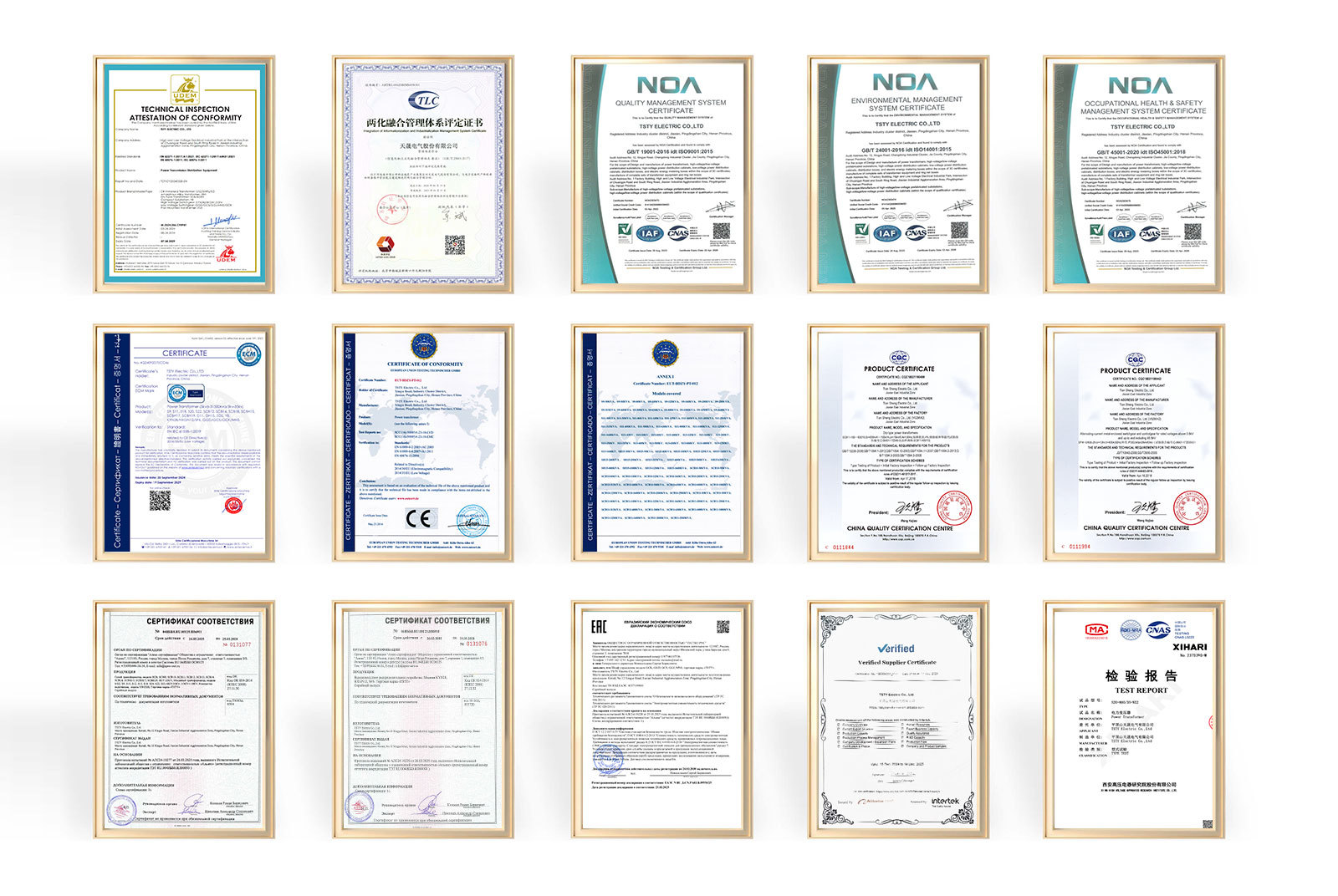

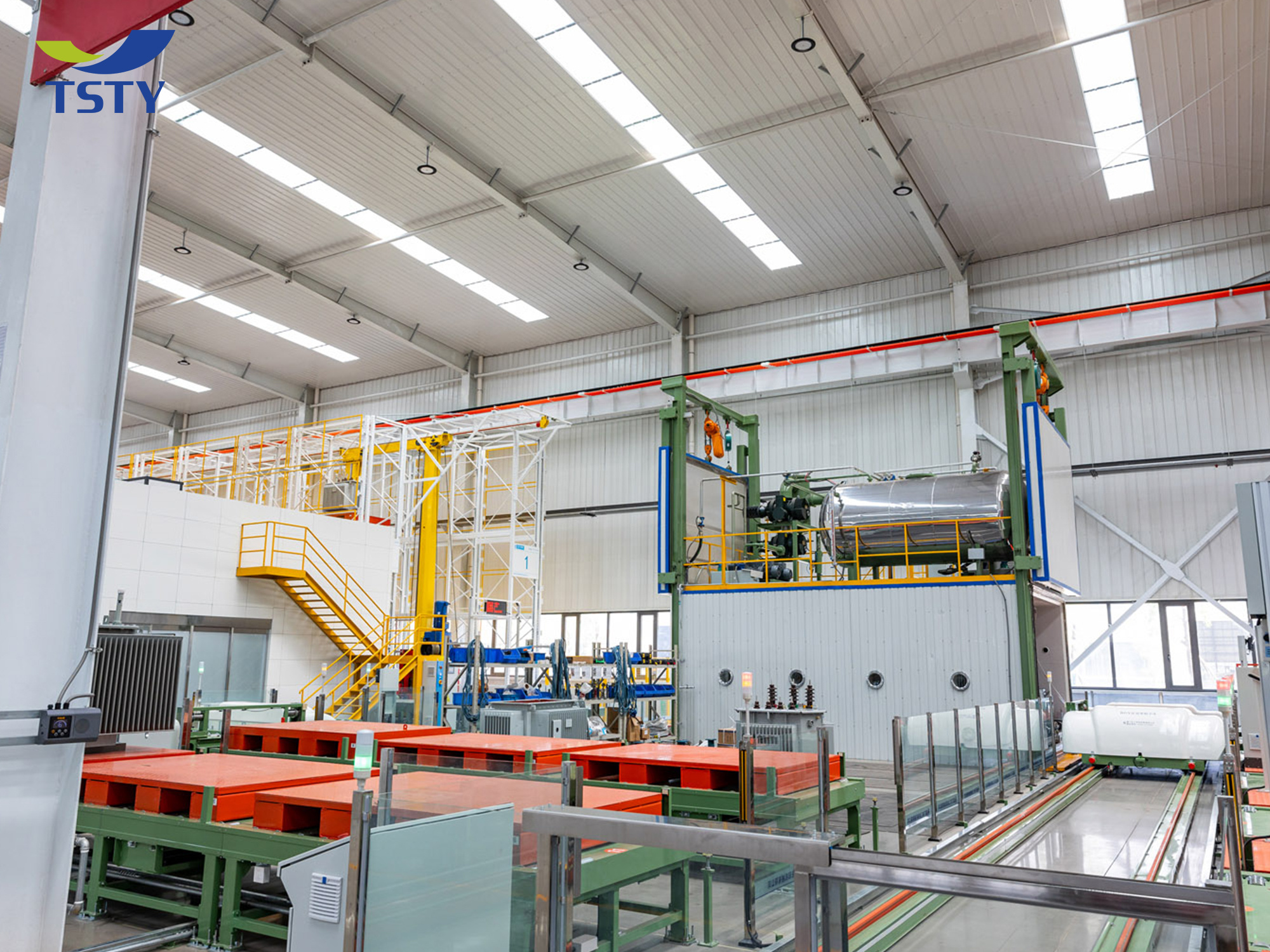

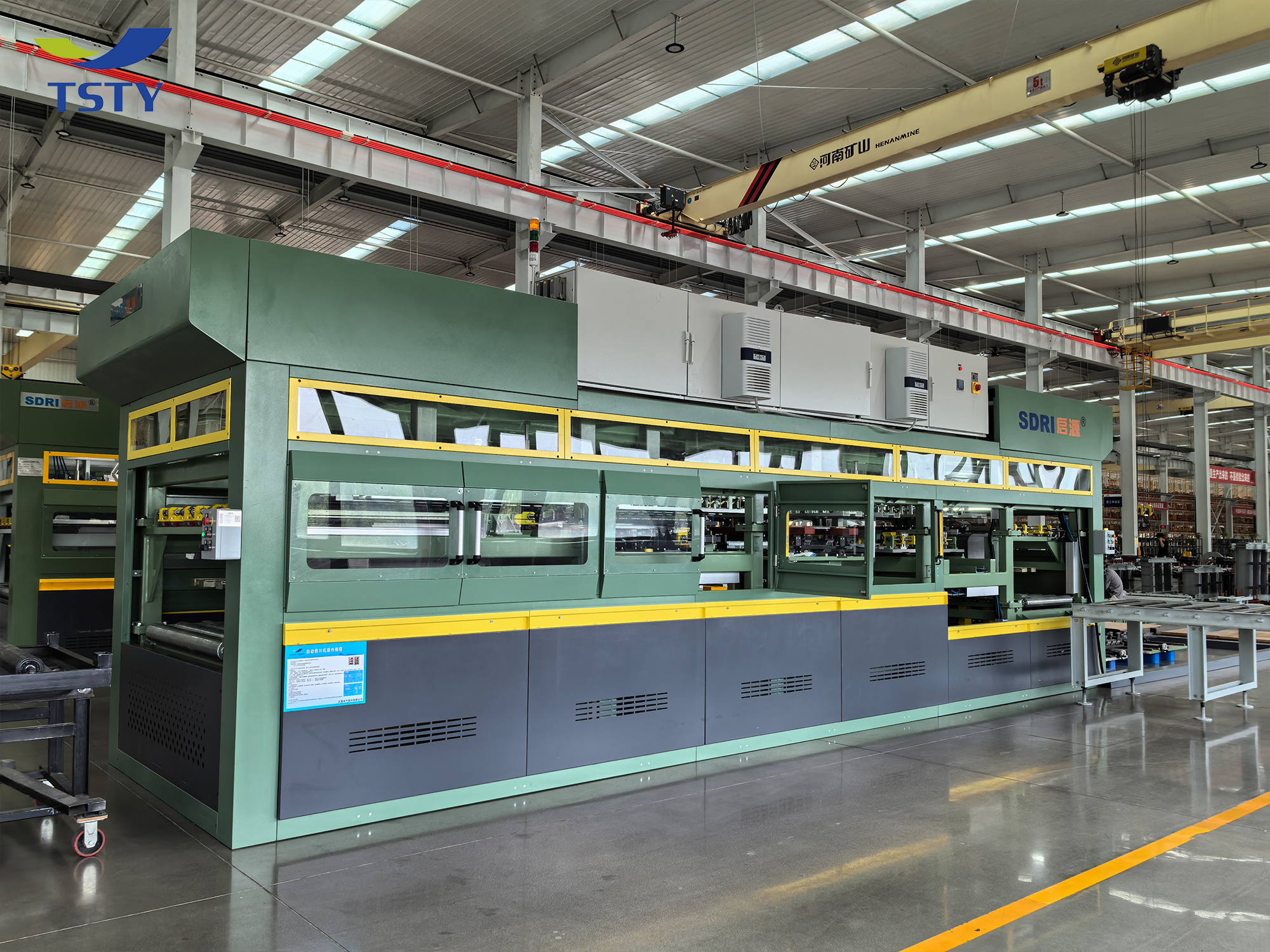

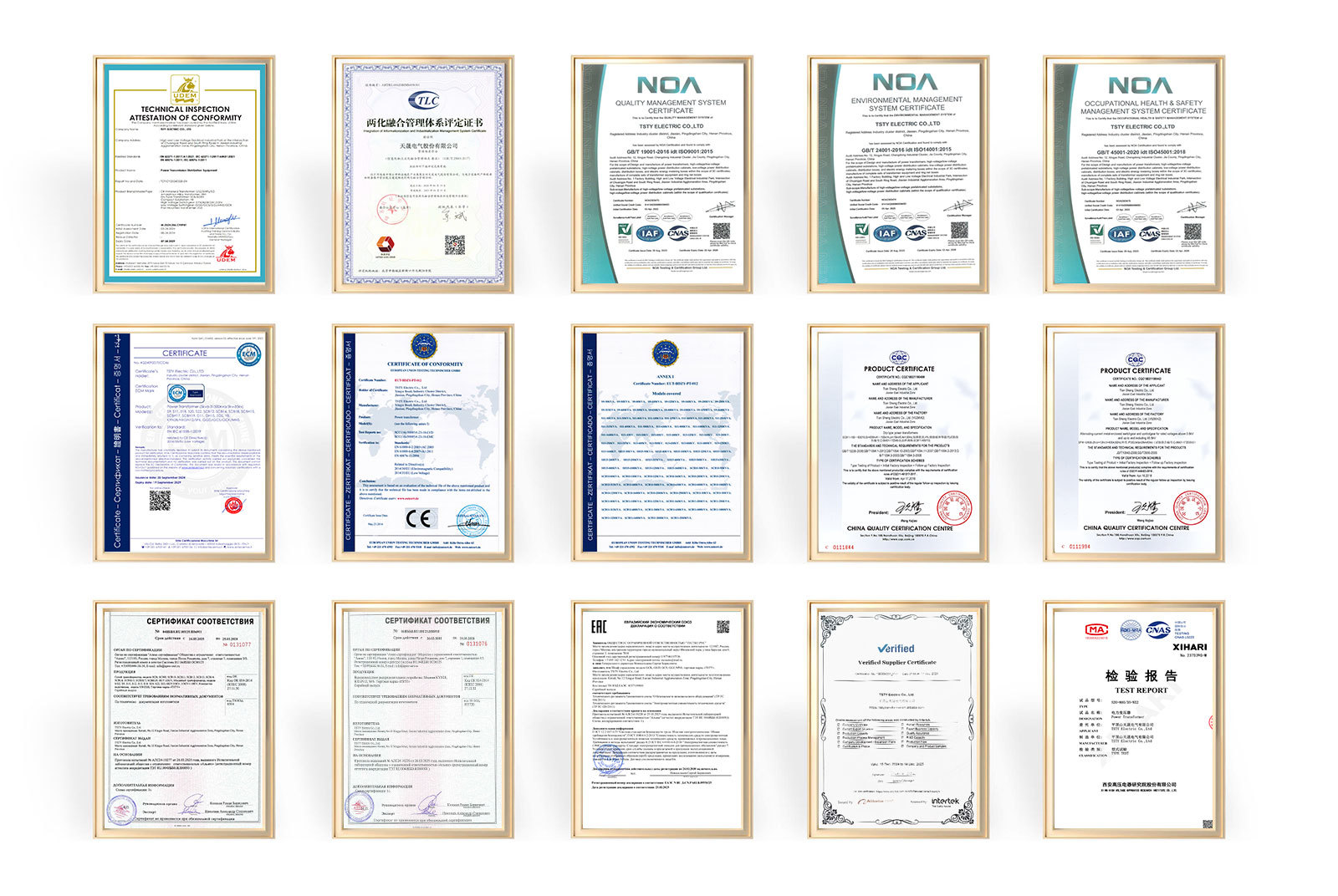

The automation rate of iron core production can reach 99%. The material is Baosteel high-magnetic silicon steel. It is equipped with high-end equipment such as horizontal and vertical shearing, fully automatic winding machine, vacuum drying/oiling system, etc., and has passed ISO/IEC international dual certification.

Automated Vacuum Oiling Machine

Remove bubbles and enhance insulation performance;

Intelligent Vacuum Drying System

Uniform heat transfer improves the transformer's withstand voltage and insulation performance, and recycles water to practice green production.

High Efficient Production

Daily production capacity of 50 units (efficiency increased by 3 times).

R&D Advantages

TSTY currently has 600 employees and a technical R&D team of more than 200 people. It has established a science and technology innovation center to focus on material and process innovation and realize independent research and development of transformers; relying on the national CNAS certified laboratory, each product passes more than ten rigorous tests such as lightning strike and insulation no-load loss to ensure stable operation in the whole environment.

Parameters Table

30-2500KVA 6-11KV Oil-immersed transformer
Rated Capacity (kVA)	Voltage Combination			Vector Group	No-Load Loss(w)	Load Loss	No-Load Current (%)	Short Circuit Impedance (%)
Rated Capacity (kVA)	High Voltage（kV)	Tapping Range	Low Voltage (kV)	Vector Group	No-Load Loss(w)	Load Loss	No-Load Current (%)	Short Circuit Impedance (%)
30	11 10.5 10 6.3 6	±5% ±2×2.5%	0.4	Dyn 11 or Yyn0	130	630	2.1	4
50					170	910	2.0
63					200	1090	1.9
80					250	1310	1.8
100					290	1580	1.6
125					340	1890	1.5
160					400	2310	1.4
200					480	2730	1.3
250					560	3200	1.2
315					670	3830	1.1
400					800	4520	1.0
500					960	5410	1.0
630					1200	6200	0.9	4.5
800					1400	7500	0.8
1000					1700	10300	0.7
1250					1950	12000	0.6
1600					2400	14500	0.6
2000					2850	19500	0.6	5
2500					3000	21200	0.6	5

S20 Oil-immersed Distribution Transformer Energy Efficiency Class
Number	Rated Capacity	Voltage Combination			No-Load Loss	Load Loss (Dyn11/Yzn11))	Load Loss (Yyno)	No-load Current (%)	Impedance
Number	Rated Capacity	High Voltage（kV)	Tapping Range	Low Voltage (kV)	No-Load Loss	Load Loss (Dyn11/Yzn11))	Load Loss (Yyno)	No-load Current (%)	Impedance
1	30	11 10.5 10 6.6 6	±5% ±2×2.5%	0.4	70	505	480	0.50	4.0
2	50				90	730	695	0.50
3	63				100	870	830	0.50
4	80				115	1050	1000	0.50
5	100				135	1265	1200	0.45
6	125				150	1510	1440	0.45
7	160				180	1850	1760	0.40
8	200				215	2185	2080	0.40
9	250				260	2560	2440	0.40
10	315				305	3065	2920	0.35
11	400				370	3615	3440	0.35
12	500				430	4330	4120	0.30
13	630				510	4960		0.25	4.5
14	800				630	6000		0.18
15	1000				745	8240		0.17
16	1250				870	9600		0.17
17	1600				1050	11600
18	2000				1225	14640			5.0
19	2500				1440	14840			5.0

S22 Oil-immersed Distribution Transformer Energy Efficiency Class
Number	Rated Capacity	Voltage Combination			No-Load Loss	Load Loss (Dyn11/Yzn11))	Load Loss (Yyno)	No-load Current (%)	Impedance
Number	Rated Capacity	High Voltage（kV)	Tapping Range	Low Voltage (kV)	No-Load Loss	Load Loss (Dyn11/Yzn11))	Load Loss (Yyno)	No-load Current (%)	Impedance
1	30	11 10.5 10 6.6 6	±5% ±2×2.5%	0.4	65	455	430	0.50	4.0
2	50				80	655	625	0.50
3	63				90	785	745	0.50
4	80				105	945	900	0.50
5	100				120	1140	1080	0.45
6	125				135	1360	1295	0.45
7	160				160	1665	1585	0.40
8	200				190	1970	1870	0.40
9	250				230	2300	2195	0.40
10	315				270	2760	2630	0.35
11	400				330	3250	3095	0.35
12	500				385	3900	3710	0.30
13	630				460	4460		0.25	4.5
14	800				560	5400		0.18
15	1000				665	7415		0.17
16	1250				780	8640		0.17
17	1600				940	10440
18	2000				1085	13180			5.0
19	2500				1280	13360			5.0
