10KV Three Phase Oil Immersed Distribution Transformer

- 商品名称: 10KV Three Phase Oil Immersed Distribution Transformer
- 商品编号: cp003
- Brand: TSTY
- Capacity: 30kVA~10000kVA
- Voltage: 6KV~35KV
- USES: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements

Email：

sales@tstyelectric.com

Tel：

+86-371-88881569

E-mail

Product Detail

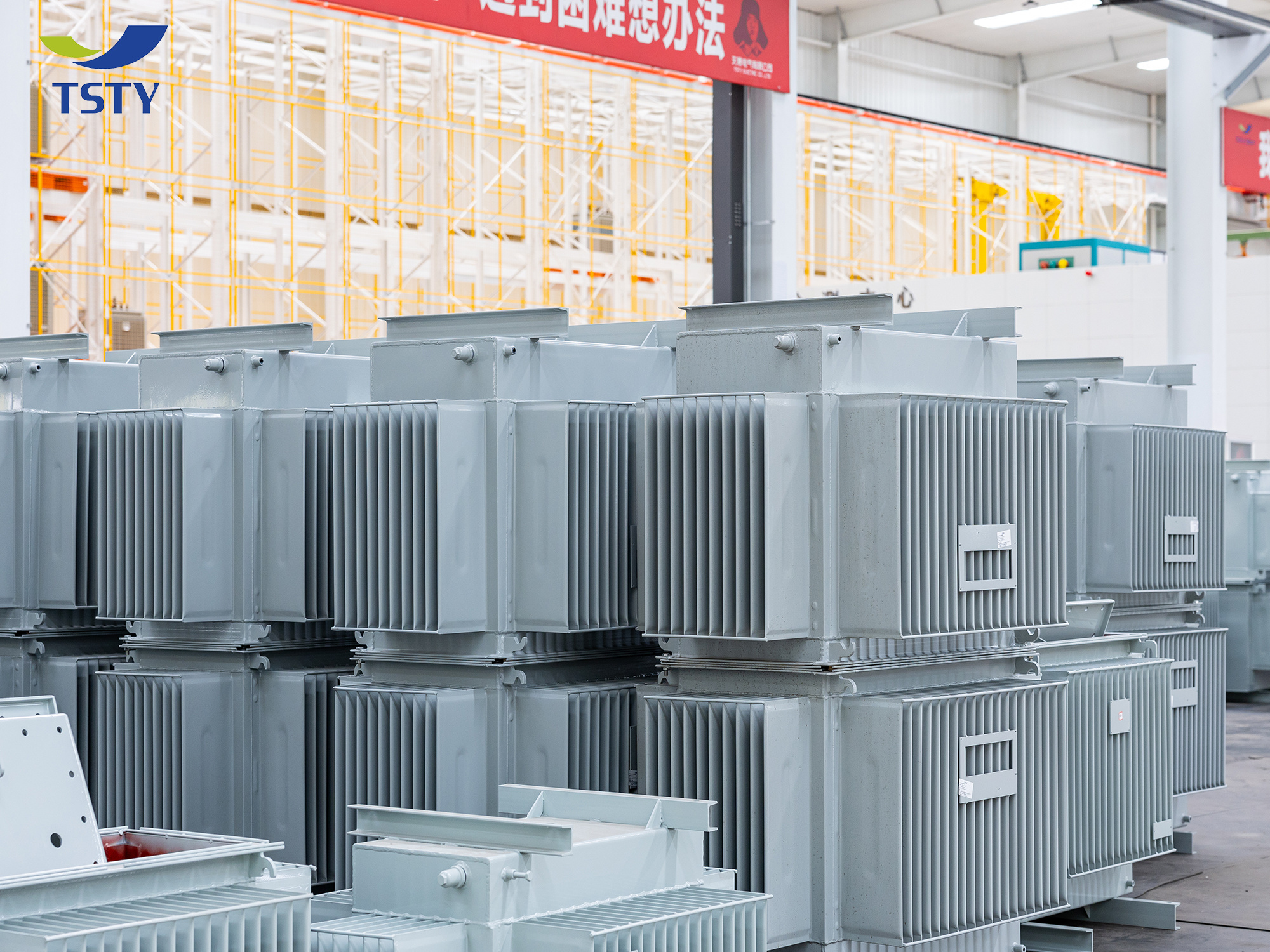

Modern 10kV transformers are usually energy-saving models, with significantly reduced no-load losses and load losses.Compared with transformers of higher voltage levels, 10kV transformers occupy a smaller area and are suitable for distribution rooms or outdoor box-type substations with limited space.Adapt to the motor, lighting and other load requirements of small and medium-sized factories.

TSTY Transformer Advantages

Raw materials

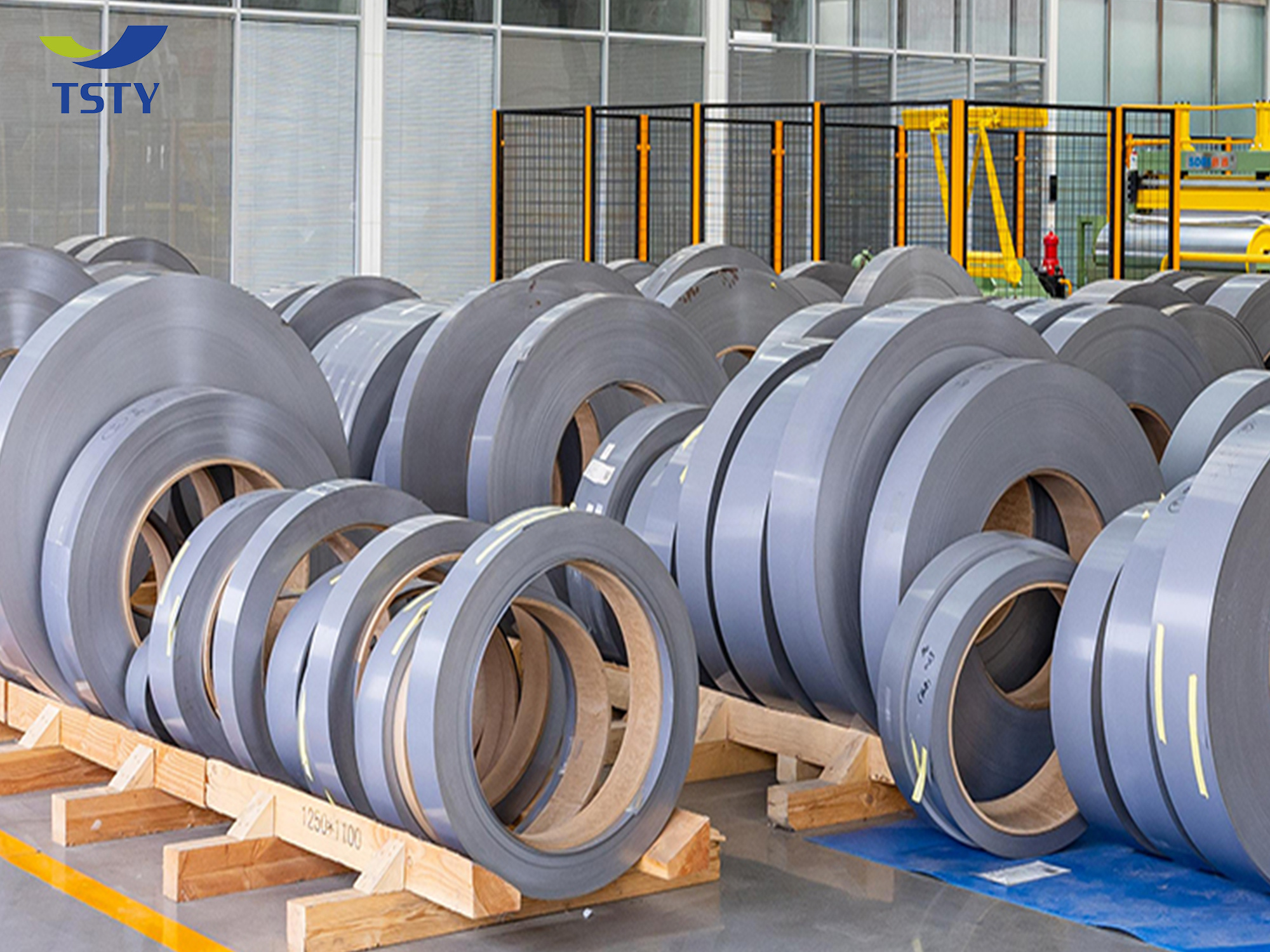

The core is made of high-quality steel sheets from Baosteel/Wuhan Iron and Steel, which are cut by shearing machines with very few burrs. The multi-step 45-degree inclined seams effectively reduce no-load loss, no-load current and noise.

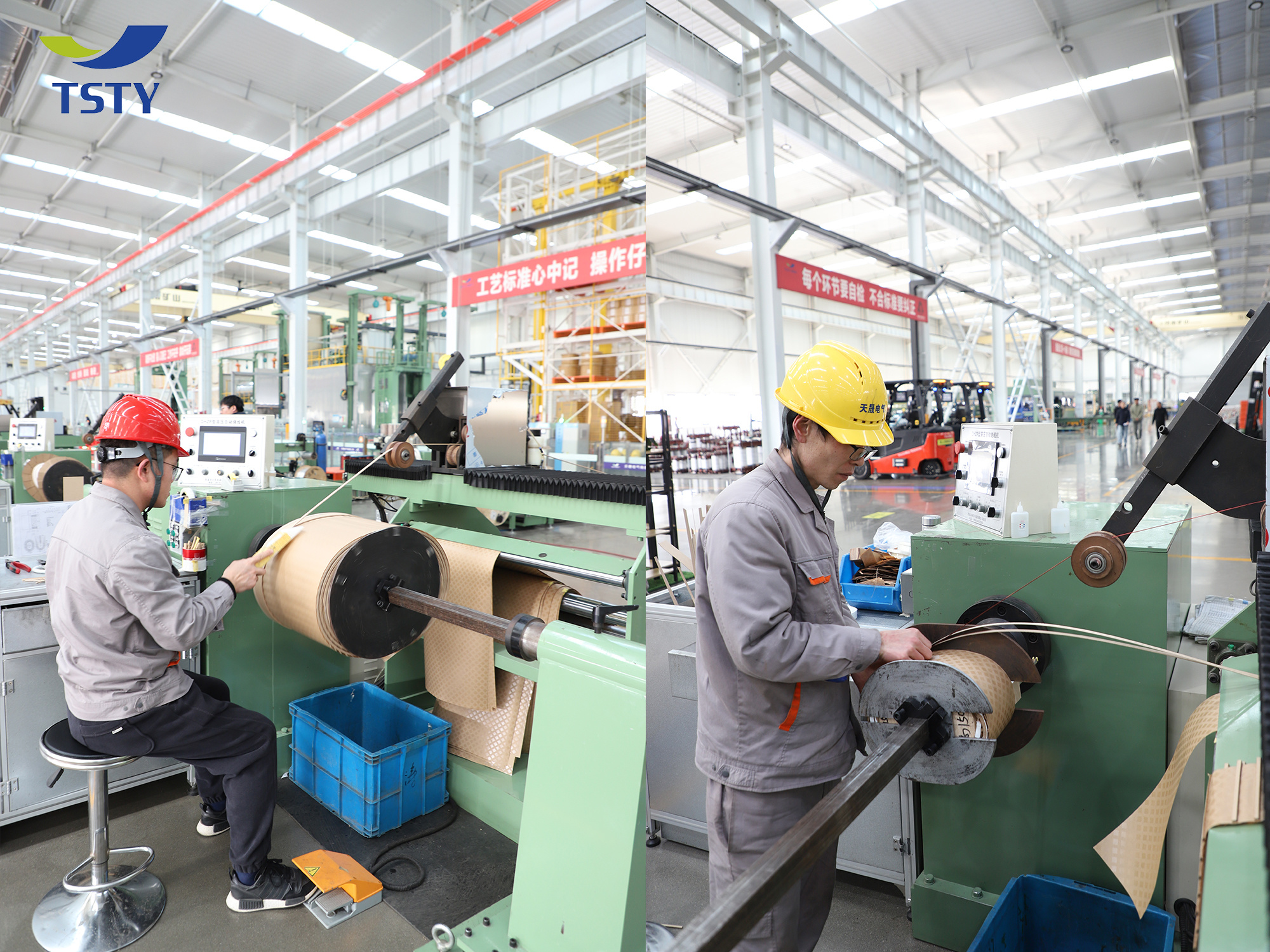

Excellent insulation performance

The insulation uses Nomex® paper, which is resistant to high temperatures. The production process uses vacuum oiling and drying environment, high-temperature resistant insulating oil, etc., which greatly improves the insulation performance.

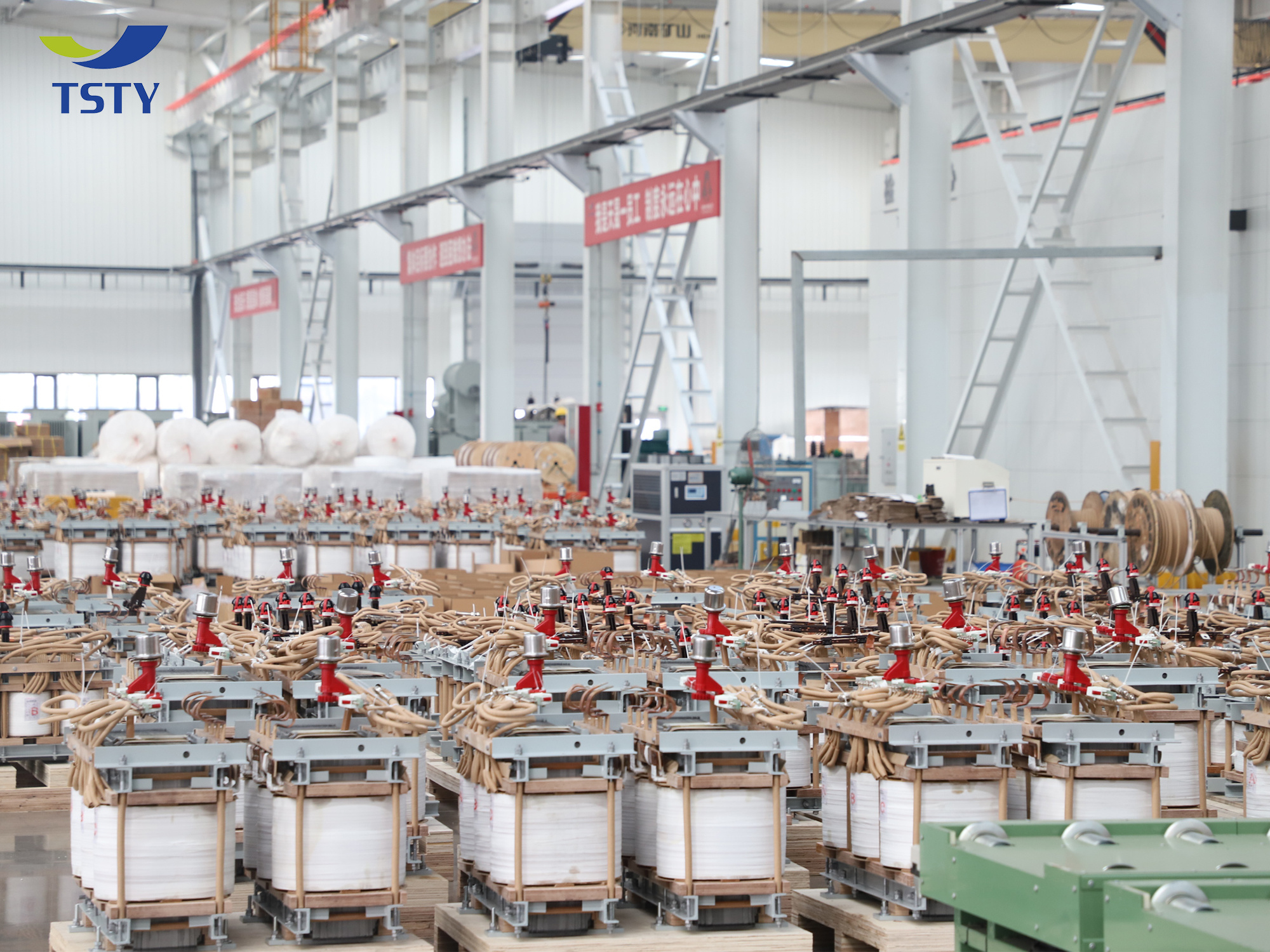

Copper winding

The use of copper winding makes the conductive performance outstanding, and it can cope with extreme environments such as high humidity and high temperature, and the service life can reach more than 30 years.

Transformer body

The TSTY transformer body is made of high-quality steel plates and plates, which meet national standards and have high mechanical strength and durability.

R&D Advantages

TSTY has more than 200 R&D personnel and has invested in building a science and technology innovation center to develop production processes and materials. TSTY has a CNAS-certified laboratory. Each transformer produced has passed more than ten rigorous tests such as lightning impact and insulation no-load to ensure stable operation in various harsh environments. All products have passed CE, IEC, SGS, BV, GOST and other certifications, reflecting that the products meet the country's strict quality standards and safety regulations.

Parameters Table

30-2500KVA 6-11KV Oil-immersed transformer
Rated Capacity (kVA)	Voltage Combination			Vector Group	No-Load Loss(w)	Load Loss	No-Load Current (%)	Short Circuit Impedance (%)
Rated Capacity (kVA)	High Voltage（kV)	Tapping Range	Low Voltage (kV)	Vector Group	No-Load Loss(w)	Load Loss	No-Load Current (%)	Short Circuit Impedance (%)
30	11 10.5 10 6.3 6	±5% ±2×2.5%	0.4	Dyn 11 or Yyn0	130	630	2.1	4
50					170	910	2.0
63					200	1090	1.9
80					250	1310	1.8
100					290	1580	1.6
125					340	1890	1.5
160					400	2310	1.4
200					480	2730	1.3
250					560	3200	1.2
315					670	3830	1.1
400					800	4520	1.0
500					960	5410	1.0
630					1200	6200	0.9	4.5
800					1400	7500	0.8
1000					1700	10300	0.7
1250					1950	12000	0.6
1600					2400	14500	0.6
2000					2850	19500	0.6	5
2500					3000	21200	0.6	5

S20 Oil-immersed Distribution Transformer Energy Efficiency Class
Number	Rated Capacity	Voltage Combination			No-Load Loss	Load Loss (Dyn11/Yzn11))	Load Loss (Yyno)	No-load Current (%)	Impedance
Number	Rated Capacity	High Voltage（kV)	Tapping Range	Low Voltage (kV)	No-Load Loss	Load Loss (Dyn11/Yzn11))	Load Loss (Yyno)	No-load Current (%)	Impedance
1	30	11 10.5 10 6.6 6	±5% ±2×2.5%	0.4	70	505	480	0.50	4.0
2	50				90	730	695	0.50
3	63				100	870	830	0.50
4	80				115	1050	1000	0.50
5	100				135	1265	1200	0.45
6	125				150	1510	1440	0.45
7	160				180	1850	1760	0.40
8	200				215	2185	2080	0.40
9	250				260	2560	2440	0.40
10	315				305	3065	2920	0.35
11	400				370	3615	3440	0.35
12	500				430	4330	4120	0.30
13	630				510	4960		0.25	4.5
14	800				630	6000		0.18
15	1000				745	8240		0.17
16	1250				870	9600		0.17
17	1600				1050	11600
18	2000				1225	14640			5.0
19	2500				1440	14840			5.0

S22 Oil-immersed Distribution Transformer Energy Efficiency Class
Number	Rated Capacity	Voltage Combination			No-Load Loss	Load Loss (Dyn11/Yzn11))	Load Loss (Yyno)	No-load Current (%)	Impedance
Number	Rated Capacity	High Voltage（kV)	Tapping Range	Low Voltage (kV)	No-Load Loss	Load Loss (Dyn11/Yzn11))	Load Loss (Yyno)	No-load Current (%)	Impedance
1	30	11 10.5 10 6.6 6	±5% ±2×2.5%	0.4	65	455	430	0.50	4.0
2	50				80	655	625	0.50
3	63				90	785	745	0.50
4	80				105	945	900	0.50
5	100				120	1140	1080	0.45
6	125				135	1360	1295	0.45
7	160				160	1665	1585	0.40
8	200				190	1970	1870	0.40
9	250				230	2300	2195	0.40
10	315				270	2760	2630	0.35
11	400				330	3250	3095	0.35
12	500				385	3900	3710	0.30
13	630				460	4460		0.25	4.5
14	800				560	5400		0.18
15	1000				665	7415		0.17
16	1250				780	8640		0.17
17	1600				940	10440
18	2000				1085	13180			5.0
19	2500				1280	13360			5.0

Company Certificates

TSTY has obtained various international certifications, including ISO9001, IEC, SGS, CCC, CE, BV, GOST, etc.

Project Installation Cases

TSTY transformer products have been widely used in the industrial field, rural electrification, power grid upgrade and transformation, new energy and other fields. And TSTY has established in-depth cooperation with more than 20 national power grids.
