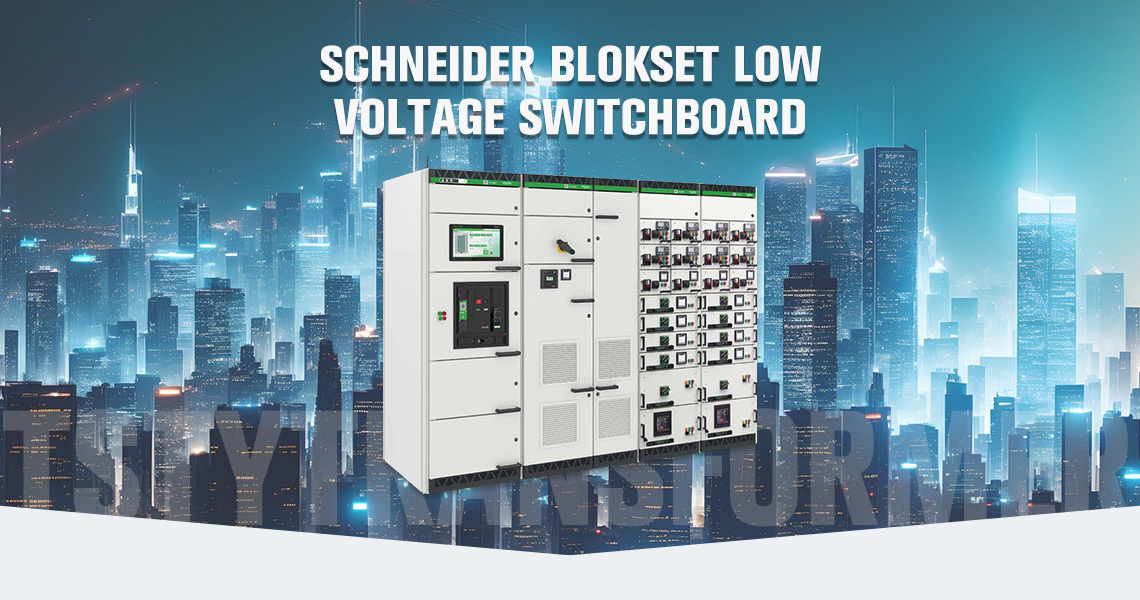

Schneider BlokSeT Active Low Voltage Switchboard

- 商品名称: Schneider BlokSeT Active Low Voltage Switchboard
- 商品编号: cp0080
- Series: Schneider BlokSeT
- USES: Used in construction, industry, energy and infrastructure
- Country of origin: China

Email：

sales@tstyelectric.com

Tel：

+86-371-88881569

E-mail

Product Detail

Schneider BlokSeT Active Low Voltage Switchboard's modular design, intelligent functions and high safety performance make it an ideal choice for modern power systems. BlokSeT complies with international and domestic standards such as IEC, GB/T, and has been certified by the international authoritative laboratory ASEFA. It is widely used in construction, industry, energy and infrastructure, meeting the high reliability and intelligent management needs of power systems in different industries.

BlokSeT Excellent Performance

1. Suitable for various harsh environments: BlokSeT low-voltage cabinets have excellent safety performance, with 85kA 0.5s internal arc personal protection capability, in line with IEC standards, and protection level up to IP54, suitable for various harsh environments.

2. Modular design: Modular design is adopted to standardize functional units such as circuit breaker compartments, busbar compartments, and cable compartments, which is convenient for rapid assembly according to customer needs and meet the needs of different application scenarios.

3.Intelligent interconnection function

Schneider BlokSeT integrates intelligent interconnection functions and supports digital operation and maintenance. Through pre-installed wireless temperature sensors, V-loss measurement devices and PowerTag wireless measurement solutions, real-time monitoring of key point temperature, power and switch status is achieved.

4.Insulation online detection system

The insulation online monitoring system of low-voltage switchgear focuses on the insulation status monitoring of medium-voltage switchgear. Real-time monitoring of partial discharge in key parts such as cable rooms and busbar rooms, uploading data to the background system, helping users to timely discover and eliminate potential faults and ensure safe operation of equipment.

Parameters Table

Schneider BlokSeT Active Low Voltage Switchboard Parameters
Rated insulation voltage	1000V (AC)
Rated operating voltage	up to 690V (AC)
Rated impulse withstand voltage	12kV
Overvoltage category	IV
Main bus rated current	up to 7000A
Rated short-time withstand current	100KA 1s
Partition type	1/2b/3b/4b
Protection level	IP20-54
Internal arc personal protection	IEC 61641 V3: 85kA 0.5s (Ipc arc), 65kA 0.3s (Ip arc)
Earthquake resistance	up to GB/T2424.25: Earthquake intensity 9 degrees
Functional unit form	fixed, withdrawable
Cabinet type	fixed cabinet, drawer cabinet, reactive compensation cabinet, dual power cabinet, variable frequency soft start cabinet
